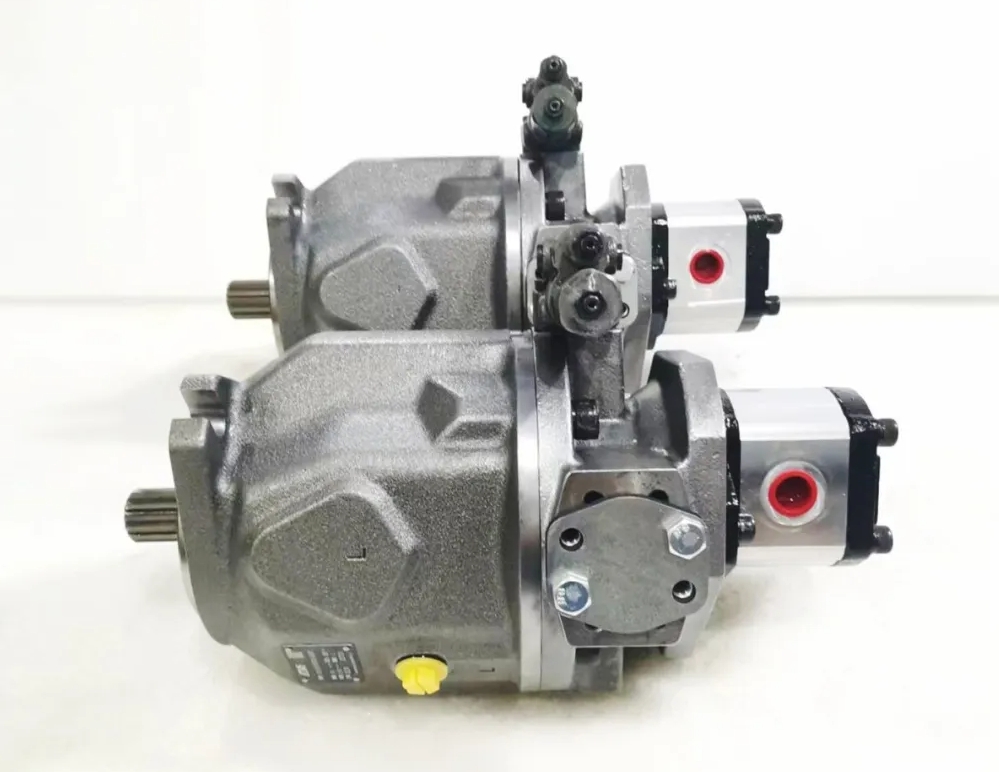

ATUS-A10VSO Features:
-Specifications and displacements 18, 28, 45, 71, 100, 140 cc;
-Nominal pressure 280 bar;
-Maximum pressure 350 bar;
-Axial piston variable displacement pump with swash plate structure, used for hydrostatic transmission in open circuits;
-Flow is proportional to transmission speed and displacement;
-Flow can be varied steplessly by adjusting the swash plate angle;
-2 case drain ports;
-Excellent suction characteristics;
-Low noise level;
-Long service life;
-Ideal power-to-weight ratio;
-Multiple control ranges;
-Short control time;
-The pump has a through-drive and can accommodate a gear pump or an axial piston pump of the same specification or less, i.e. 100% through-drive.
Commonly used control valves:
DG - Two-point direct hydraulic control
DR - Pressure control
DRG - Remote pressure control
DFR - Pressure and flow control
DFLR - Pressure, flow and power control
ED - Electro-hydraulic control
ER - Electro-hydraulic control
